Smart LOP identification
Once the connections to the LOPs are completed using the pluggable pre-wiring, all LOPs are automatically addressed by the main controller thanks to the exclusive LOP identification technique by Mik-el. Hence, complicated settings via dip-switches or similar methods are no more necessary!
Easy Connections With Plug-in Connectors
The connections between the main controller and the LOPs, and between the inspection box and the COP are easily completed using the plug-in pre-wiring. Thus, both connection faults are avoided, and significant savings in labour and time are achieved.
EN81-70 Conformity
The LOP cards with serial communication gives different audible feedback for up and down calls. As the car arrives at a floor, different audible signals are given for up or down directions of next travel.

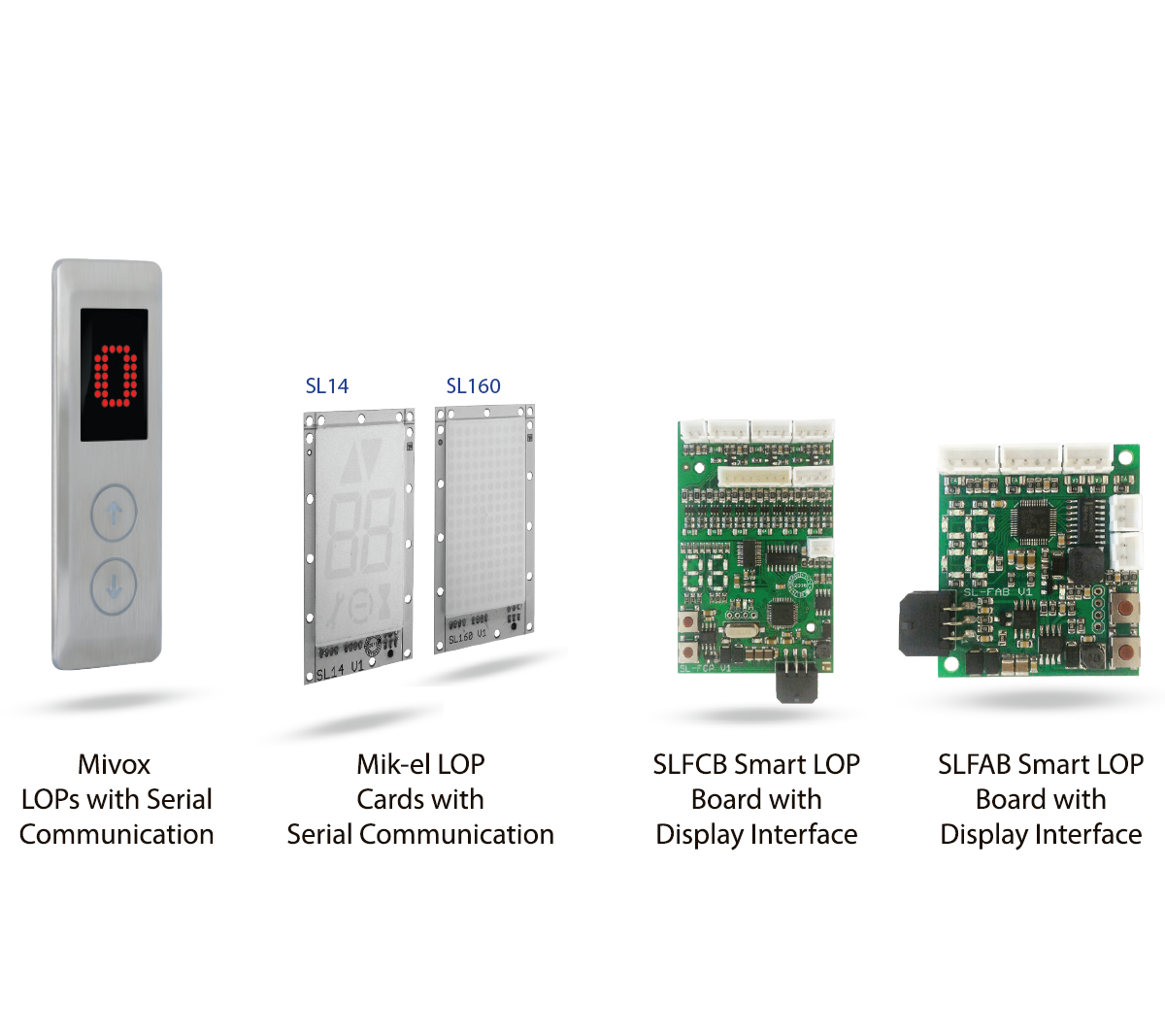

Mivox LOPs with Serial Communication
Surface mount LOPs simplifying pushbutton and indicator connections with “Plug’n’Play” feature,
- Dot-matrix, 7 segment and TFT LCD indicator versions,
- Single button and double button alternatives for simplex and duplex lifts,
- Ultra thin inox body design of 9,9 mm thickness
Mik-el LOP Cards with Serial Communication SL14, SL160
Serial communication compatible floor cards with on-board indicators and terminals for call buttons to be installed in to the LOPs of different brands.
- Dot-matrix (SL160), 2×7 segment (SL14) display versions,
- Single button and double button alternatives for simplex and duplex lifts,
- To be used in LOPs by different brands,
SLFCB
Smart LOP board with display interface
- Gray and binary code outputs for interfacing to different displays
- Output signals for Busy, Out of service, Inspection mode and Direction arrow
- Output signal for buzzer interface
- Plastic box enabling easy fixing outside the LOP
- Programmable auxilary inputs and outputs
SLFAB
Smart LOP board without display.
- Economic design for smart LOPs without display
- Outputs for direction arrows
- Onboard buzzer for auidible signal
- Programmable auxilary inputs and outputs
