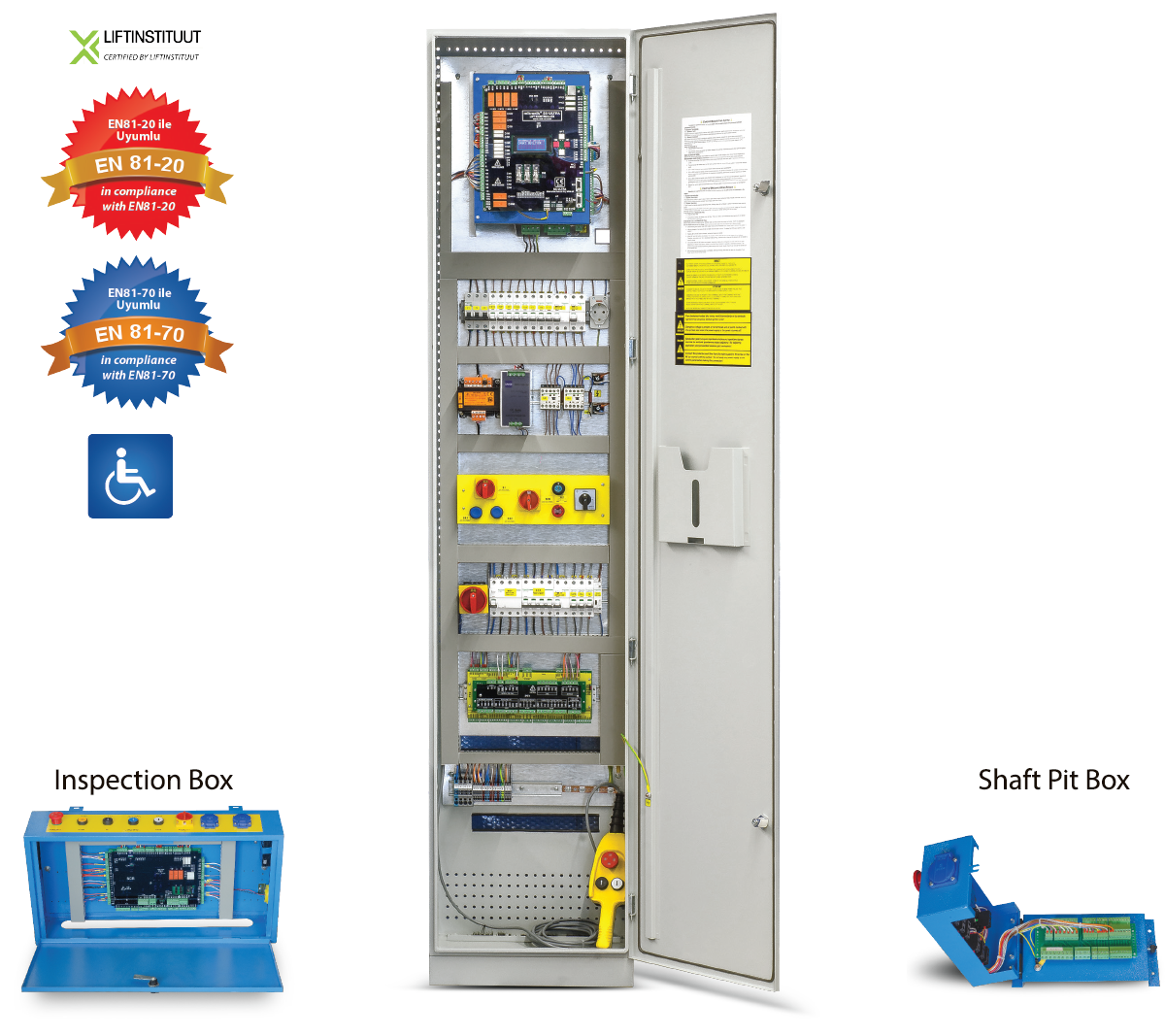

48 Stops, 3 m/s Speed, 4 Lift Group, Double Car Door,
Single Board Structure,
- Easy control panel production thanks to single board design and terminal boards,
- On-board monitoring circuit for unintended car movement (UCM)
- On-board door bridging and 3-phase monitoring circuits,
- Savings in terminals and labour also in car roof station thanks to single board design,
- Savings in connections and labour, and avoiding misconnections in the pit station with pit board,
- Easy software updating via the on-board Micro SD card modüle,
- Group control of 4 lifts,
- Support for double car door selectable at different floors (only for automatic doors),
High Level Safety in Conformity with EN 81-20,
- Safe and functional support for all additional requirements of EN81-20/-50,
- Detection of bridge door contact,
- Contactor monitoring at start and during travel,
- Safe inspection mode with inspection stations on the car roof and in the pit,
- Evacuation operation during fire and earthquake in harmony with related safety standards,
Easy Menu Integrated with the Drive,
- Easy menu structure integrated with MD inverter family and wizard menü for easy and quick commissioning,
- Automatic direct approach and easy floor level adjustment with MD family inverters,
Plug’n’Play Serial Bus with Smart
LOPs and COP,
- Serial communication with smart LOPs and COP via reliable CAN Bus,
- Automatic addressing of LOPs via smart identification ability. No need for manual addressing of LOPs at each floor via Dipswitches or other tools!
- Completely pluggable LOP and COP connections,
- Easy connection to Mivox smart LOPs and COP,
- Serial bus compatibility with any type and brand of LOPs and COPs using the smart LOP boards (SL family) and COP board (SC family) by Mik-el,
- Serial or parallel connection option to the COP,
Advanced Functionality,
- Intermediate speed output for adjacent floor,
- Automatic selection of suitable speed depending on the distance to target floor
- Advanced door opening and re-levelling with open doors,
- Easy and functional shaft copying options
User Friendly Categorized Menu with Rich Functions,
- Password protected menu access,
- Detailed error registration with date and time records,
- Monitoring of signals on the car roof and in the pit stations,
- Monitoring the voltage of emergency illumination and alarm battery,
Assisting Functions for Easy Commissioning,
- Easy commissioning via automatic shaft learning mode,
- Disabling the COP commands,
- Disabling the opening of door,
- Random car call registration,
- Disabling the landing calls,
- Controlling the automatic door on the inspection board on the car roof,
Additional Features,
- Short floor operation (up to minimum 50cm floor distance),
- Long floor distance support,
- Options for extra bottom or top stops at group lifts,
- Rescue mode via back-up power during mains black-out,
- Option of operation for automatic door at one stop and manual doors at other stops,
- Full load, Over-load, Minimal Load and attendant switch functions,
- Battery charger and car fan relay on the car roof board,
- Fireman operation mode*,
- Remote monitoring via internet *,
- Menu access via smart phones *,
- Portable hand terminal *
*At your service soon
