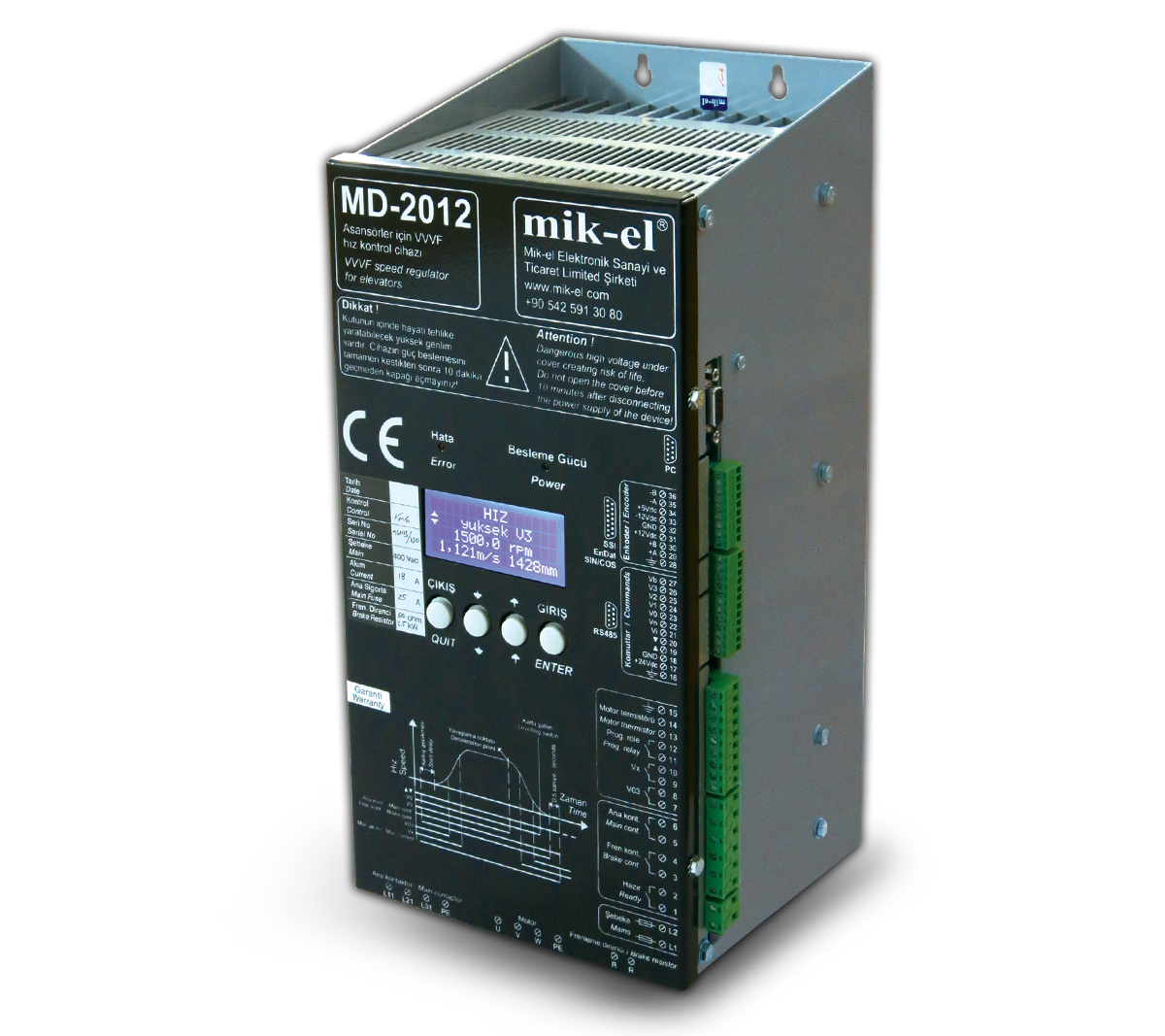

Inverter For Lift Applications
- Interior line filter for EM compatibility,
- Single body size up to 34A/15kW with compact design,
- Rescue operation with a single 1500VA UPS up to 22A motor by detecting the easier direction,
- Potential to supply 2 times the nominal current for 5 seconds during start,
- Protects itself and the motor against short circuit, over current, over voltage, overheating, overload, low voltage,
- Programmable high-torque starting for A3 test mode,
Superior Comfort and Motor Control,
- Drives 3-phase asynchronous and synchronous (gearless) motors,
- Closed-loop (with encoder) or open-loop (no encoder) operation modes,
- Noiseless operation thanks to 16 kHz switching,
- Possibility to drive synchronous motors up to 100 poles,
Comprehensive Features,
- Direct leveling thanks to automatic braking distance measurement,
- Saving and re-calling user settings,
- Indication of the braking distance at the selected travel speed calculated using the motor-gear parameters,
- Copying and downloading parameters via PC connection,
- Easy interface to the controller via programmable relay outputs for several purposes,
- 3 programmable inputs for several speeds and functions,
Password Protected, Easy-to-Use Menu,
- Categorized lift parameters dedicated to lift applications
- Simple and easy to understand user friendly menu interface,
- Easy status tracing via detailed monitoring menu screens,
- Detailed error registering with date and time data,
